A springy snap-action button with a lever arm.
When you need to make your own button, detect when something hits something else, or detect another binary movement.
There are three connectors on the microswitch: COM
, NC
, and NO
. COM
stands for "common." NO
and NC
mean "normally open" and "normally closed." There are actually two switches in the microswitch available with these pins.

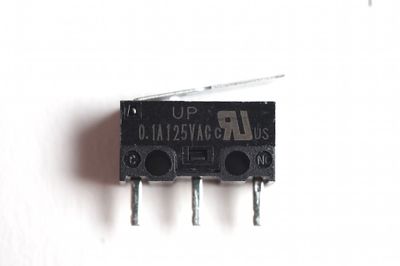

The above photo shows the common pin (left) connecting to either the normally open or normally closed pins (center and right) depending on if the switch is pressed or not. When the button is pressed, it pushes the horizontal metal piece down to the terminal below.
If you connect the switch with the COM
and NC
pins, then those two pins are normally connected (a.k.a. "closed") when you aren't pressing the button. They are then disconnected when you press it. The opposite is true for the NO
pin; if you connect the switch with the COM
and NO
pins, then those two pins are normally disconnected (a.k.a "open") when you aren't pressing the switch, and they are connected when you press it.
Connect the COM
pin to 5V
and either NC
or NO
to a digital pin on the Arduino. Additionally connect a pulldown resistor between the digital pin and GND
. See the above section for an explanation of the COM
, NC
, and NO
pins.
/*
* This program reads a switch or button on pin ACTUATOR_PIN
* and turns on and off the Arduino's LED.
*
* Created 2021-05-26 by Perry Naseck
*/
// Switch or button connected to digital pin 2
// and the onboard LED on pin 13
const int ACTUATOR_PIN = 2;
const int LED_PIN = 13;
// Variable to keep track of the current state
int actuatorState = 0;
void setup() {
// Set up the actuator pin to be an input
// Don't forget the pulldown resistor!
pinMode(ACTUATOR_PIN, INPUT);
// Set up the LED pin to be an output
pinMode(LED_PIN, OUTPUT);
}
void loop() {
// Get the current state
actuatorState = digitalRead(ACTUATOR_PIN);
// Turn on and off the LED based on the actuator
digitalWrite(LED_PIN, actuatorState);
}
